Microwave Probes

High-performance rugged probes for RF and SI probing



PacketMicro offers a family of single-ended and differential probes that are much stronger than microprobes. With performance at up to 20 and 18 GHz, they have comparable measured S-parameter result at lower prices.

Highlights

  • Quality, precision, performance, ruggedness
  • Symmetrical (no separate GS and SG configurations)
  • Good for bare and stuffed boards and boards with solder bumps

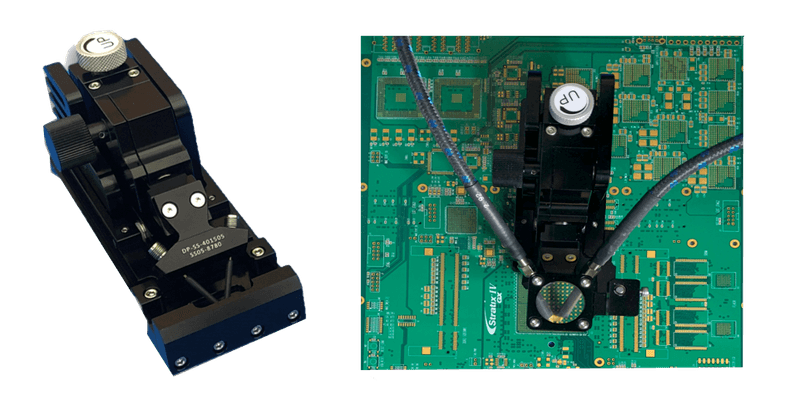

  • Work with PacketMicro TP60 and TP300 (with adapter) positioners
  • Most price competitive in the industry
  • Availability: now


S-Probe

S-Probe

Rugged single-ended probe for RF, signal integrity and PI testing.

 Go To Page

Constant shrinking size of circuit components makes soldering semi-rigid RF cables to test GHz circuits impractical. The rugged S-Probe and its TCS60 calibration substrate allow engineers to perform probe-tip calibration for accurate, repetitive measurements. Its strong beryllium copper (BeCu) tips is perfect for direct probing of solder pads and circuit components.

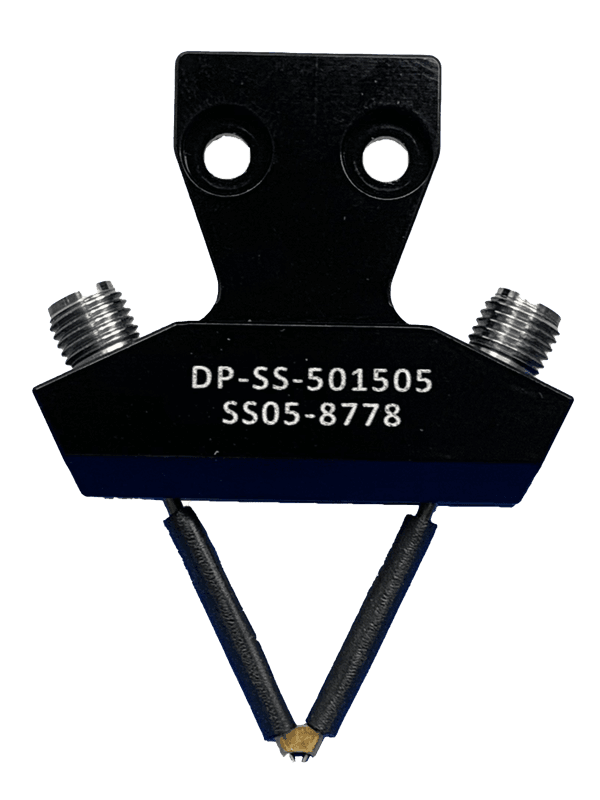

D-Probe

D-Probe

The stackable holders with steel structure and magnetic base hold PCB steadily at various height.

Go To Page

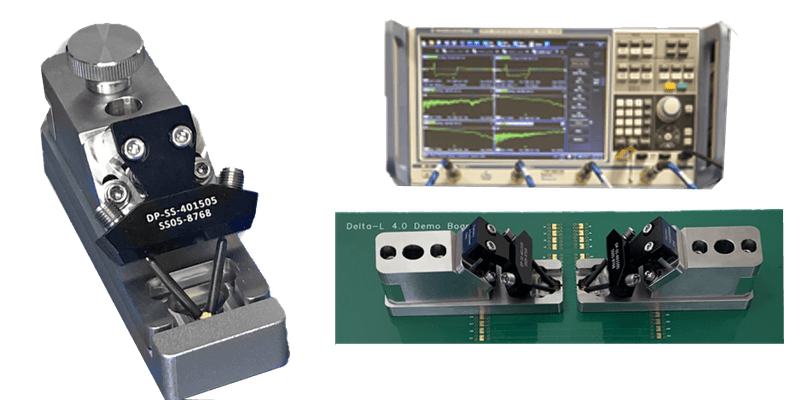

With only two signal pins, D-Probes can perform accurate measurements without the need of nearby ground pads. Recent advancement in 2X-Thru de-embedding methodology makes the D-Probe ideal for signal-integrity measurements. With de-embedding tools, such as EMStar SFD, SS D-Probes and GSSG microprobes offer comparable accuracy.

About PacketMicro

PacketMicro, based in Silicon Valley, provides a wide range of gigahertz probes, probe positioners, bench-top probe stations, and digital microscopes. In addition, PacketMicro offers wireless modules and engineering services in Bluetooth Smart, ZigBee, and wireless sensor networks. PacketMicro customers include many Fortune 100 companies.
