- Thin and flexible
- Superior phase stability against bending and temperature fluctuations
- Continuous operation temperature range: -30 to +85°C.
- Good for Vector network analyzers, RF and high-speed digital testing devices
FLEXIBLE RF CABLES

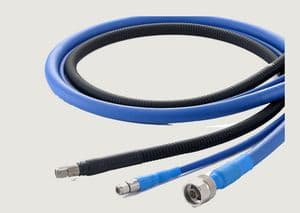

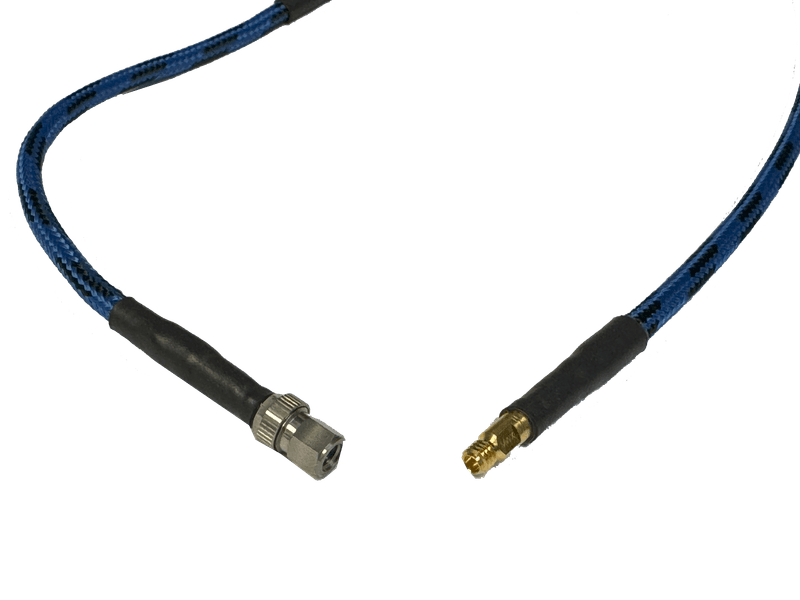

Junkosha's MWX series cable assemblies offer excellent phase and loss stability against temperature fluctuations and bending. They are ideal for connecting vector network analyzers for probing measurements up to 26.5 GHz, 40 GHz, 50 GHz, and 67 GHz.

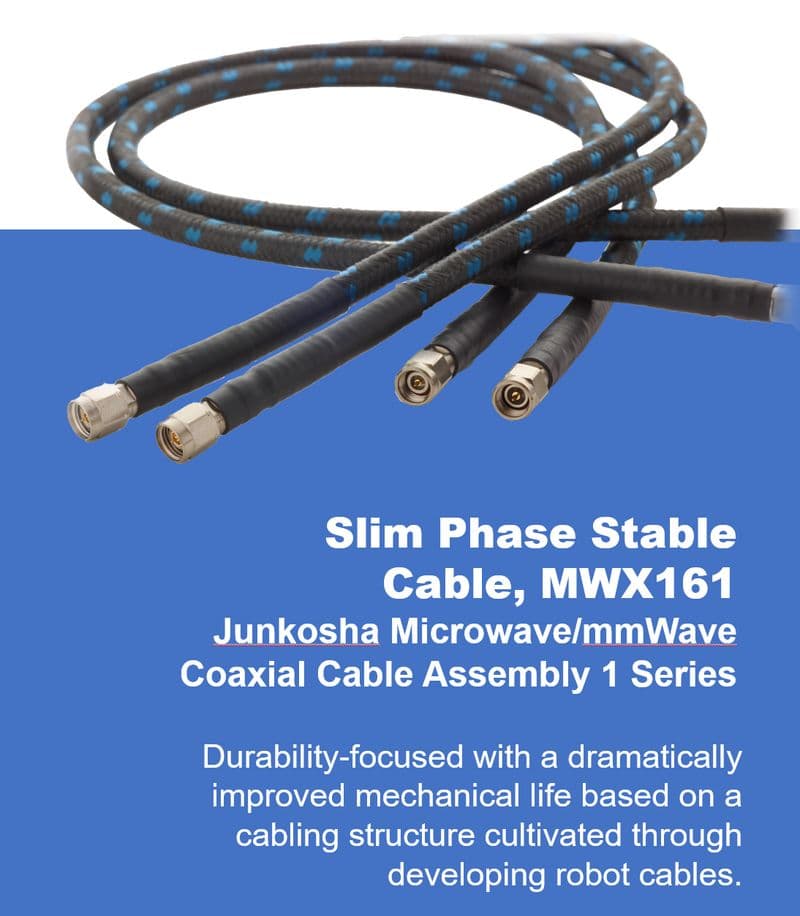

Junkosha's MWX161 slim, flexible cables are ideal for probing applications.
HIGHLIGHTS
- High performance cable assemblies for microwave measurements up to 145 GHz
- High cable flexibility for precision probing applications

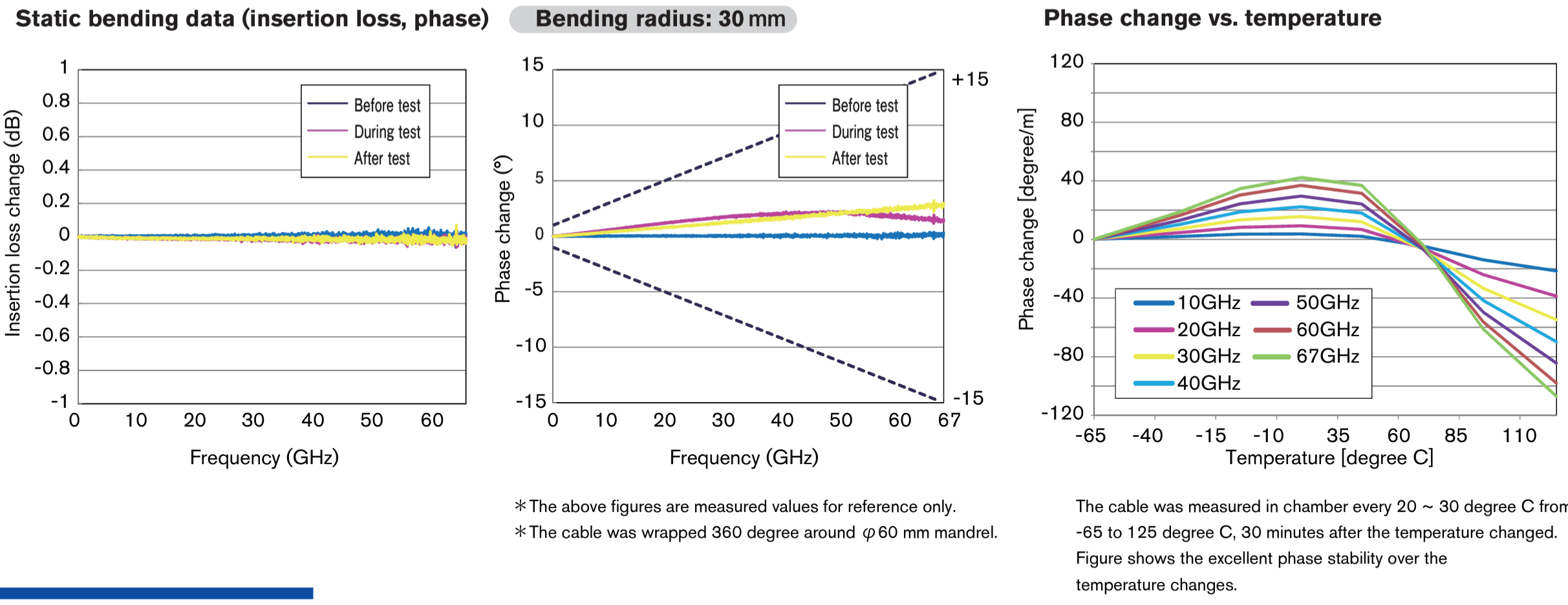

- Superior phase stability against bending and temperature fluctuations
- Lineup features heat-resistant types that can be used in a wide continuous operating temperature range (-65 to +125°C) in microwave measurement environments
- Highly flexible and high phase stability ideal for probing applications when the test probes and positioners pulled by the cable force may cause difficulties in performing precision measurements.
PacketMicro is an authorized reseller for Junkosha. For cable assembly inquiries, please contact sales@packetmicro.com

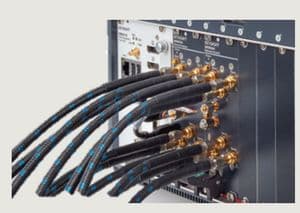

Adaptable, Wide Range of Uses
- Cable assemblies with a small diameter at the neck, making it the most suitable for a Multiport VNA.
- Torque Driver is available to mount on narrow pitch connector arrangement board.
Flexible and Durable
- Cable assemblies with excellent mechanical characteristics using SUS flexible tubing for protection.

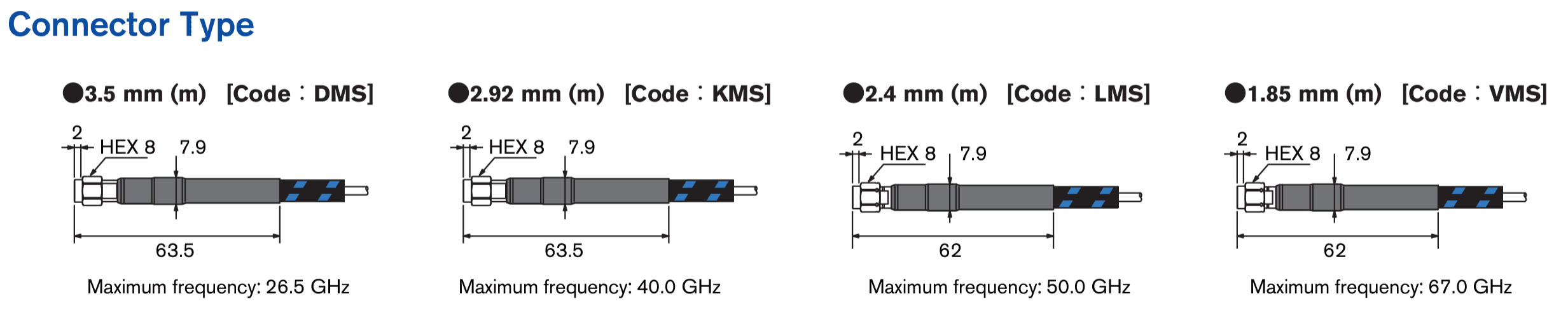

- Wide range of connectors: 3.5 mm, 2.92 mm, 2.4 mm and 1.85 mm

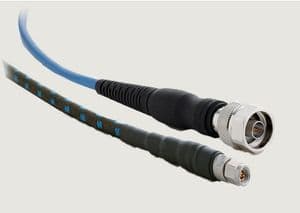

Wide Temperature Range
- Cable assemblies with excellent phase stability against bending and temperature.
- Suitable for a wide continuous operation temperature range (-65°C to +125°C) in microwave measurement environments
| EMF-01 SERIES SPECIFICATIONS | MWX161 |
|---|---|
| Maximum Usable Frequency | 67.0 GHz |
| Standard Insertion Loss (Db/M) @18.5 GHz | 3.5 |
| Standard Insertion Loss (Db/M) @ Maximum Frequency | 7.3 dB/m |
| Characteristic Impedance | 50±1 Ω |
| Capacitance (typ.) | 90 pF/m |
| Propagation delay (typ.) | 4.35 ns/m |
| Velocity of propagation (typ.) | 77% |
| Higher mode frequency (typ.) | 70 GHz |
| VSWR (typ.) | 1.30 |
| EMF-01 SERIES MECHANICAL PROPERTIES | MWX161 |
|---|---|
| Maximum Outer Diameter | 7.9 (0.311") |
| Outer Cable Diameter (mm) | 6.5 mm (0.256") |
| Cable Weight (g/m) | 79 |
| Minimum Bending Radius (inner side) | 30 mm |
| Assembly Length (mm) Min. | 600 mm (24") |
| Assembly Length (mm) Max. | 1500 mm (60") |
| Armored Side Pressure | 196 N/cm |
| Continuous Operating Temperature Range (°C) | -65~+125 |

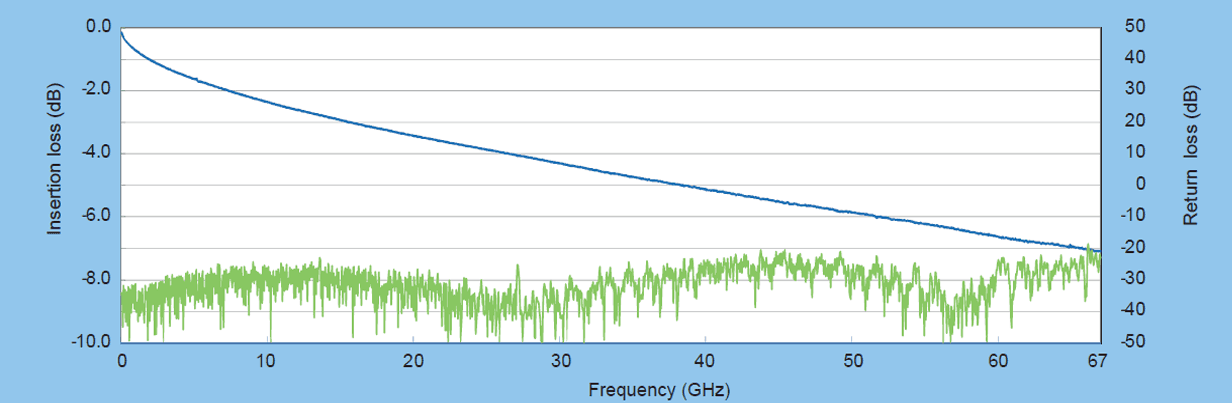

MWX161 INSERTION AND RETURN LOSS
[ Assembly length 1000mm, Connector: Both side 1.85 mm (m) ]
MWX161 TECHNICAL DATA

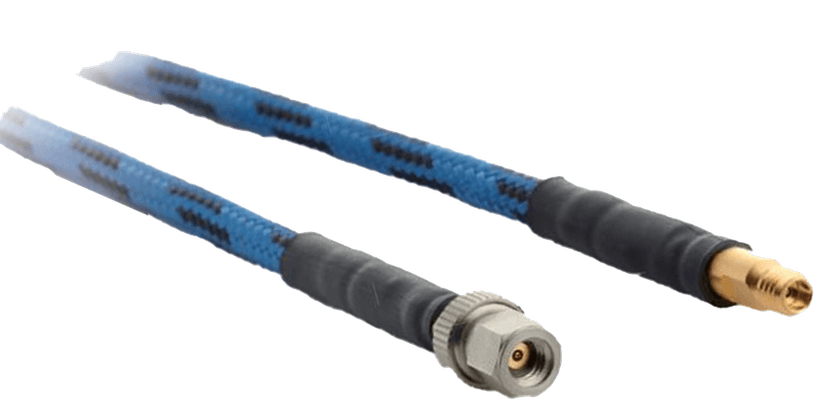

MWX001, MWX002
Junkosha Microwave/mmWave Coaxial Cable Assembly 0 Series- Precision Test Grade Phase Stability
| EMF-00 SERIES SPECIFICATIONS | MWX001 | MWX002 |
|---|---|---|
| Frequency Range | 110 GHz | 120 GHz |
| VSWR | 4.2 | 5.0 |
| Insertion Loss | 11.8 dB/m | 14.5 dB/m |
| Characteristic Impedance | 50 Ω | 50 Ω |
| Capacitance | 88 pF/m | 88 pF/m |
| Propagation Delay | 4.2 ns/m | 4.2 ns/m |
| Velocity Factor | 79% | 79% |
| Operating Temperature | 70 GHz | 120 GHz |
| Cable Type | 1.43 | 1.43 |
| EMF-00 SERIES MECHANICAL PROPERTIES | MWX001 | MWX002 |
|---|---|---|
| Maximum Outer Diameter | 4.0 mm | 4.0 mm |
| Outer Cable Diameter | 50 g/m | 50 g/m |
| Cable Weight | 15 mm | 15 mm |
| Minimum Bending Radius | 90~ 2000 (3.5~78.8") | 90~1000 (3.5~39.4") |
| Armored Side Pressure | 100 mm (3.94") | 100 mm (3.94") |
| Continuous Operating Temperature Range | 200 mm (7.87") | 200 mm (7.87") |
| 157 N/cm | 157 N/cm | |
| -30 ~+85 | -30 ~+85 |
Applications
LARGE PCB PROBING
Large-PCB Probe Station
(HPS24RP)
HPS24 probe station is designed for probing large printed-circuit boards. It can be configured for 1 or 2-sided probing.
2-SIDED PROBING
2-Sided Probe Station
(VPS10-H4-V4-S4)
Designed for laboratories with limited space, the VPS10 makes 2-sided probing easy.
BENCHTOP RF PROBING
Horizontal Probe Station
This simple, easy-to-use probe station with probes are ideal for testing antennas, RF modules and PCBs.
