HYBRID FLEX
PROBE STATION
The versatile probe station for PCBs in all sizes and orientations, customizable for any probing need
Setup and configure
in minutes
Compact and
lightweight
Fast lock and unlock
magnetic switches
HIGHLIGHTS
- Completeness: Single test platform for RF, SI, and probing with microprobes and PacketMicro Probes
- Flexibility: Unlimited re-configurability for PCB's in various sizes and orientations
- Ease of Use: Quick setup and easy maneuverability with stackable components
- Low Cost: Fractional cost of competing solutions
- Equipped to your needs: Out of our pre-configurable stations, build a 3d one tailored to your purpose

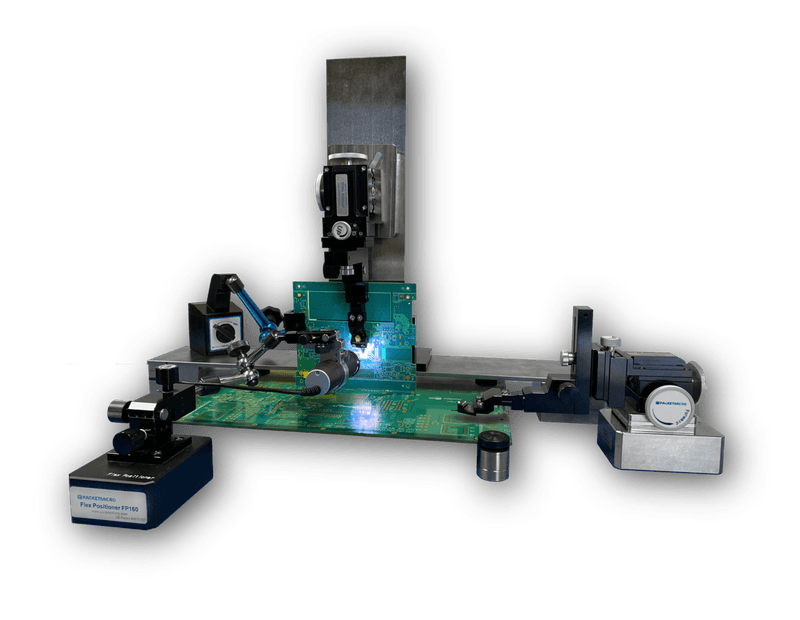

HYBRID PROBE STATION FEATURES
PCB FIXTURES
Horizontal and vertical probe fixtures for holding a wide range of PCBs
ADJUSTABLE HEIGHT
Magnetic blocks, bridge, and sliders allow you to probe in any position and orientation
VARIOUS ADAPTERS
Holds probes (active, passive, differential browsers), microprobes, microscopes
FLEX POSITIONER FP SERIES
Flexible manipulators with XYZ stage and planarization knob to position probe & microscopes
PRECISION POSITIONER TP SERIES
XYZ stage and long probe arm with θ control allows for high-precision
MAGNETIC LOCK SWITCH (WITH ON/OFF LEVER)
Easy, quick arrangement of positioners with a switchable magnetic base
BUILDING BLOCKS

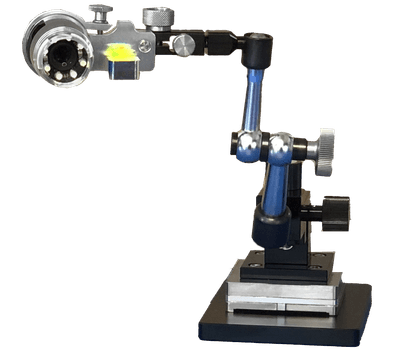

FLEX POSITIONERS
FP160 and FP160MS for holding microscopes
TP PRECISION POSITIONER
TP250 positioner with various arms and adapters for holding microprobes and PacketMicro probes
BRIDGE
Versatile PB100-24 bridge with magnetic base
*Custom bridge platen available upon request
ALUMINUM BLOCKS
Customize height by adding magnetic 1" BLA01 or 2" BLA02 blocks to any positioner or platen

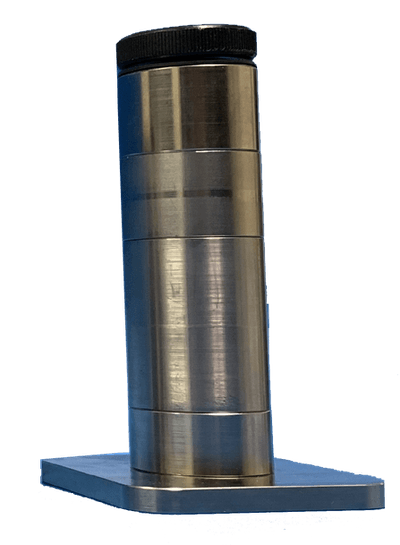

PCB HOLDERS
PH100 and PH200 to achieve height

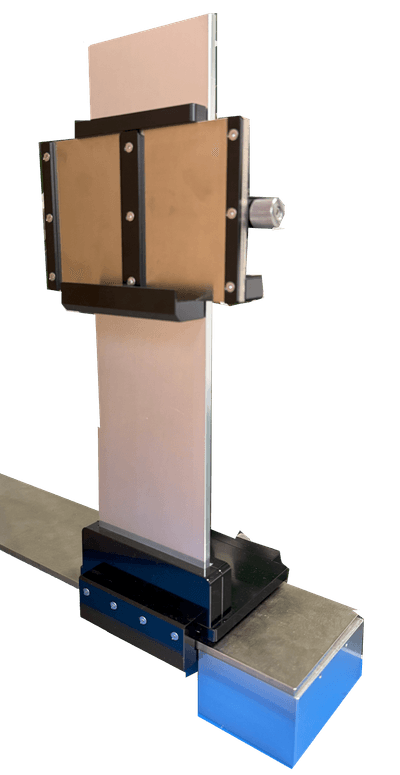

VERTICAL PLATEN
HPF-SL05P slider with 15" platen allows you to place positioners vertically for probing testing
HORIZONTAL RAIL SET
HPF-AR37W25RP4 rail set for horizontal 1 & 2-sided probing
SLIDERS
Various sliders hold both probe positioner and microscope for quick positioning of test probes.
