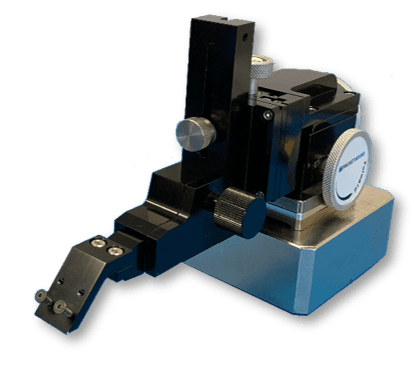

TP250
PRECISION POSITIONER
TP250 probe positioner can be used in all PacketMicro Do-It-Yourself (DIY) horizontal and vertical probe stations. Its high-precision XYZ stage with magnetic lock at the base and long probe arm with θ control make it ideal for probing with microprobes and rugged PacketMicro probes in a wide range of RF and signal-integrity measurements.
Patented probe arm
Avoids probe damage
Versatile Configuration
Works with all PacketMicro fixtures
Precise Design
Ensure accurate, repeatable measurements
HIGHLIGHTS

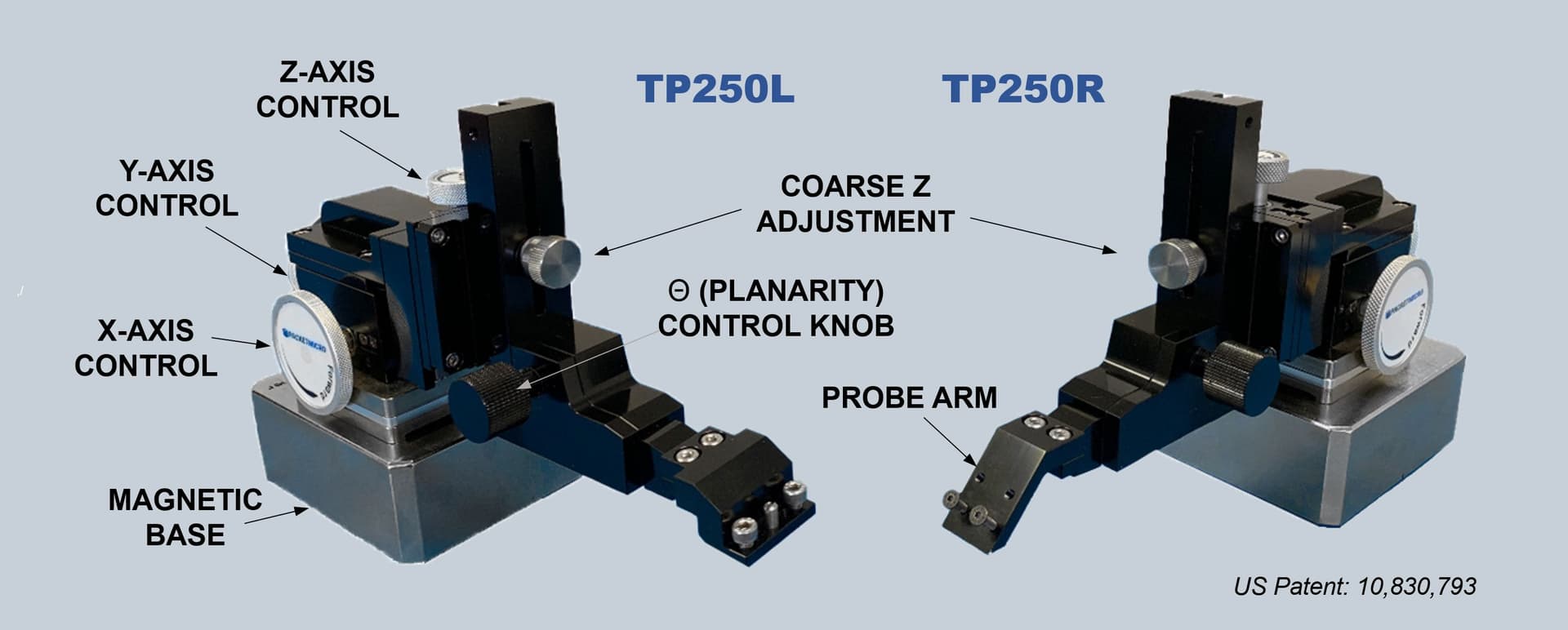

- Precision Movement: 4-axis control (X, Y, Z, θ) for exact probe positioning
- Travel Range: 12.5 mm in X/Y/Z directions
- Resolution: 5 µm
- Compatibility: Works with all PacketMicro probes and fixtures
- Applications: RF testing, signal integrity, power integrity, and general PCB measurements
- Magnetic Base: Quick and secure mounting to steel surfaces
Specifications
XYZ-axis travel
16 mm with 500 µm/turn (50 TPI),x/y-axis control knobs
Resolution
5µm
Height coarse adjustment
5 mm/step (14 steps)
Θ (Planarity) control
±10° with 2.5°/turn and 0.025° resolution
Dimensions (LxWxH)
228x76x108mm(9"x3"x4.3" in.)
Weight
2.86 lb. (1.3kg)
TP250 Base
Base
Metal with Magnets and rubber
Dimensions
4 x 3x 1.5 in. (108 x 76 x 38 mm)
Weight
5 lb. (3.87 kg)
Accessories

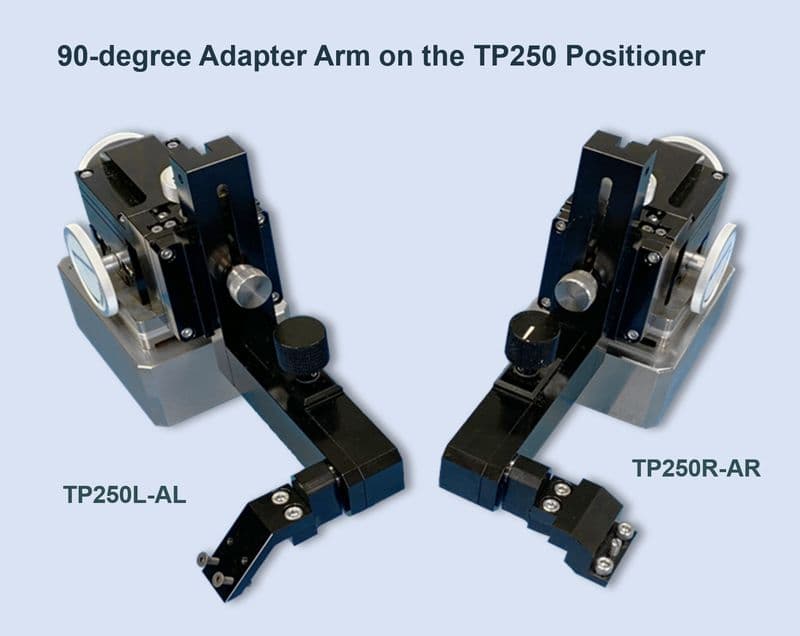

TP250-ARM-AL/ TP250-ARM-AR
Right and left-handed TP250 arm with 90-degree adapter head
Right and left-handed TP250 arm with 90-degree adapter head

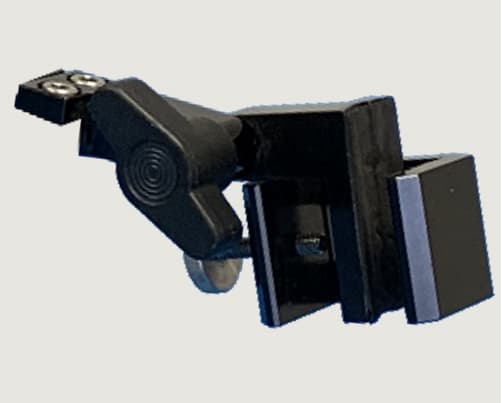

TP250-AVA60
Variable-angle adapter(45°, 60°, 75°)
Variable-angle adapter(45°, 60°, 75°)

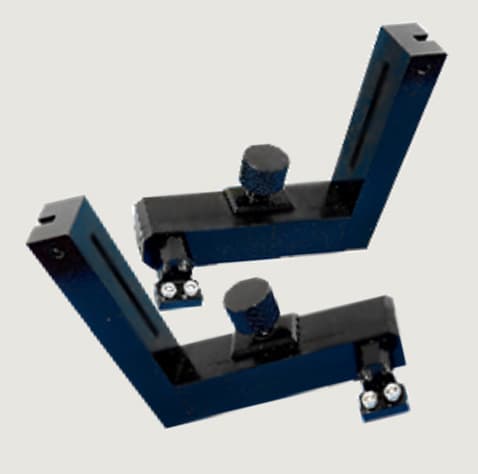

TP250-ABR45
45-degree bracket
45-degree bracket
TP250-AUA16
Universal adapter
Universal adapter

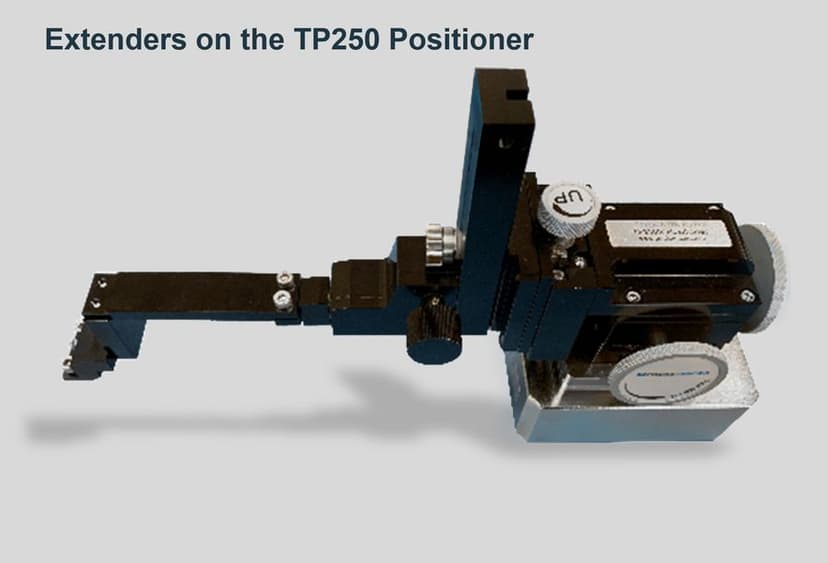

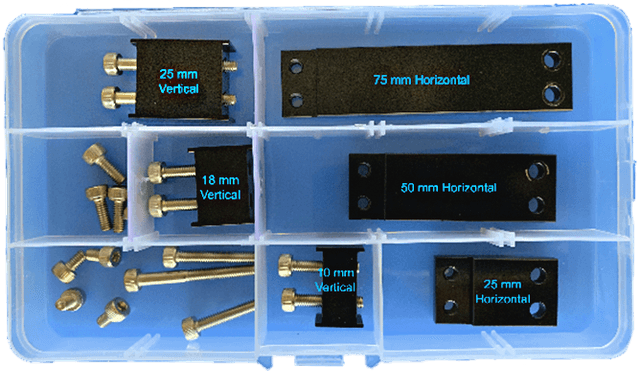

TP250ES01 Extender Kit
- Vertical extenders: 10, 15, 25 mm
- Horizontal extenders: 25.4, 50.8, 76.2 mm
TP250 & TP150 Comparison
TP250
TP150
Probe Compatibility
Microprobes & PacketMicro Probes
PacketMicro Probes
Probe Fixture Compatibility
All PacketMicro fixtures
Standalone only
Large XY control Knobs
Yes
No
Smooth XYZ adjustment
Excellent
Typical
Base Magnetic Lock
Yes
No
Accessories
Many
Few
Applications

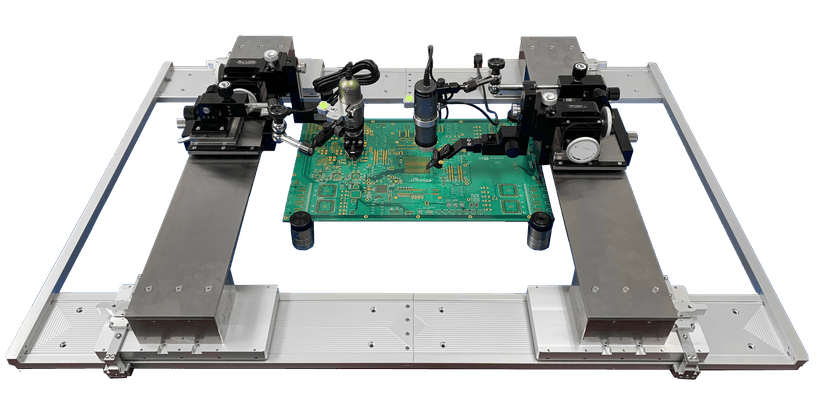

LARGE PCB PROBING
Large-PCB Probe Station
(HPS24RP)
HPS24 probe station is designed for probing large printed-circuit boards. It can be configured for 1 or 2-sided probing.
2-SIDED PROBING
2-Sided Probe Station
(VPS10-H4-V4-S4)
Designed for laboratories with limited space, the VPS10 makes 2-sided probing easy.

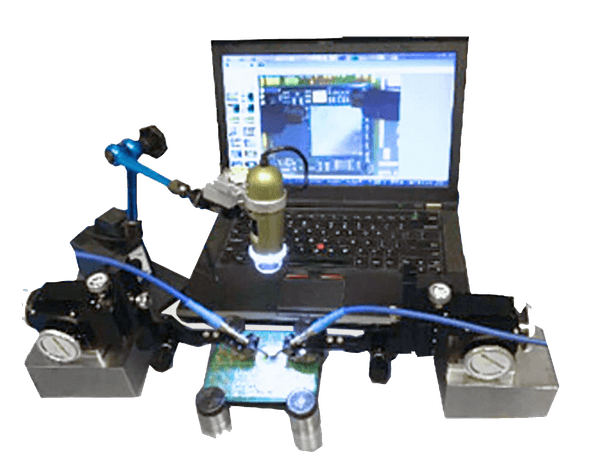

BENCHTOP RF PROBING
Horizontal Probe Station
This simple, easy-to-use probe station with probes are ideal for testing antennas, RF modules and PCBs.
