R-PROBE
High-Performance Rugged Probes for RF & SI Probing
R-Probe series is designed for power integrity and RF testing. Narrow BeCu tips are ideal for probing on hard-to-reach test pads surrounded by components.
HIGHLIGHTS
- High Bandwidth: DC to 18 GHz
- Low Insertion Loss: < 3 dB @ Bandwidth
- Ruggedness: Strong, narrow BeCu tips
- High Repeatability: Precision-engineered tips for direct probing on hard-to-reach test pads surrounded by components
- Probe-tip Calibration: accurate measurements without the need of soldering semi-rigid RF cables
- User experience similar to that of a microprobe
| Specifications | |
|---|---|
| Bandwidth | 18 GHz (0.2/0.3 mm pitch) 15 GHz (0.4/0.5 mm pitch) 12 GHz (0.8/1.0 mm pitch) |
| Insertion Loss | < 3 dB @ Bandwidth |
| Impedance | 50±2 Ohm |
| Connector Type | SMA Female |
| Dimensions (LxWxH) | 38 x 20 x 12 mm (1.5x0.8x0.5") |
| Weight | 8 gm |
| Probe Force | 50 gm (typical), 200 gm (Max w/o damage) |
S21 Measurement

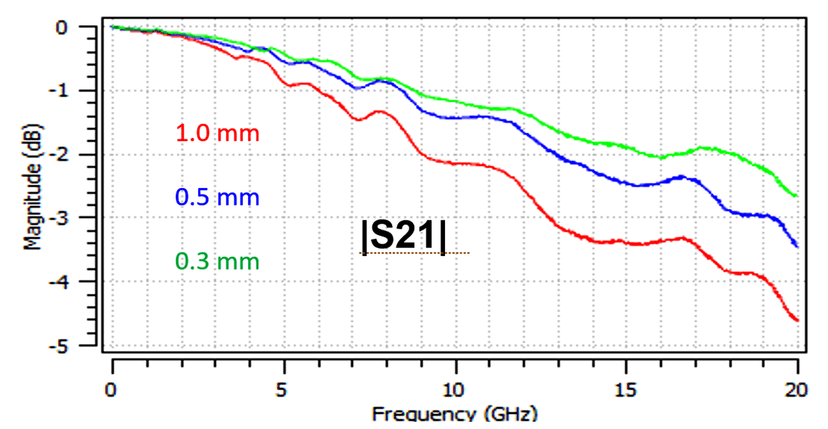

Un-calibrated S21 for 0.3/0.5/1.0 mm pitch
| PART NO. | BW (GHz) | PROBE PITCH |
|---|---|---|
| RP-GR-181502 | 18 GHz | 0.2 mm / 8 mil |
| RP-GR-181503 | 18 GHz | 0.3 mm / 12 mil |
| RP-GR-151504 | 15 GHz | 0.4 mm / 16 mil |
| RP-GR-151505 | 15 GHz | 0.5 mm / 20 mil |
| RP-GR-151506 | 15 GHz | 0.6 mm / 24 mil |
| RP-GR-121508 | 12 GHz | 0.8 mm / 32 mil |
| RP-GR-121510 | 12 GHz | 1.0 mm / 40 mil |
S11 Measurement

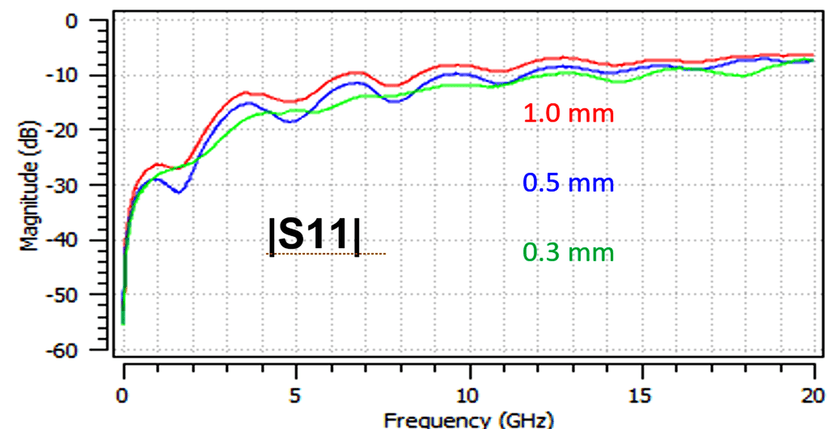

Un-calibrated S11 for 0.3/0.5/1.0 mm pitch
| PROBE PITCH VS. COMPONENT SIZE | |
|---|---|
| PROBE PART NO. | SIZE |
| RP-GR-181503 | 01005 |
| RP-GR-151505 | 0201 |
| RP-GR-121510 | 0402 |
Accessories
TCS50
CALIBRATION SUBSTRATE

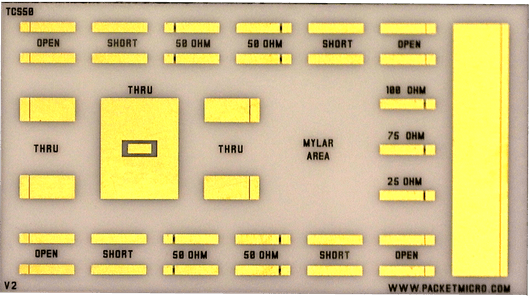

R-Probe product family includes a TCS50 calibration substrate with short, open, load, and thru (SOLT) standards for S-parameter calibrations. This substrate enables a user to move the measurement reference point directly to the probe tips for accurate, repetitive testing.
TP250 Precision Positioner
A precision positioner works with all PacketMicro's DIY probing fixtures.
TP150 Precision Positioner
A low-cost positioner is good for simple, standalone probing measurements.

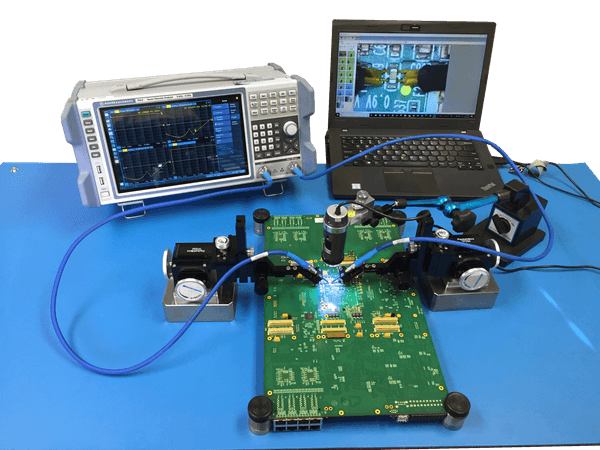

Applications
RF MEASUREMENT

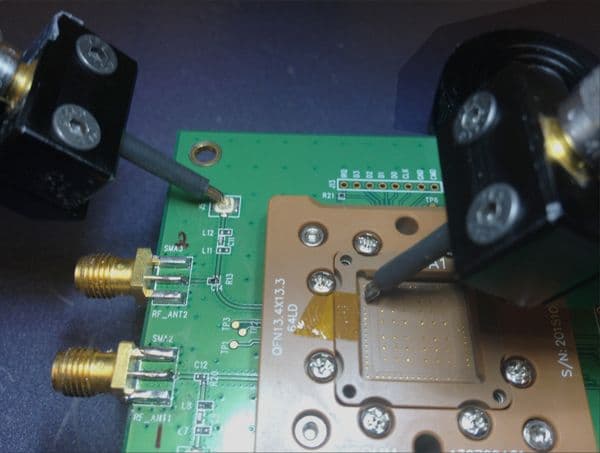

The rugged R-Probes can be used to measure the S21/S11 between socket pin and antenna connector.
Check out our other Probes
S-PROBE
S-Probe series is designed for RF, signal integrity, and power integrity testing of printed-circuit boards.
D-PROBE
D-Probe series is designed for signal integrity, and RF testing. Its strong beryllium copper (BeCu) tips make the D-Probe ideal for manufacturing testing of highspeed printed-circuit boards.
