TEST FIXTURES

Get Active on Your Cable Tests

PacketMicro, based in Santa Clara, California, is an authorized reseller for Luxshare-ICT. We provide sales and technical support for their certified test fixtures, which are used for compliance testing of USB, HDMI, and DisplayPort connectors and cable assemblies.

Contact sales@packetmicro.com for more information.

UNIVERSAL SERIAL BUS 4 TYPE-C TEST FIXTURES

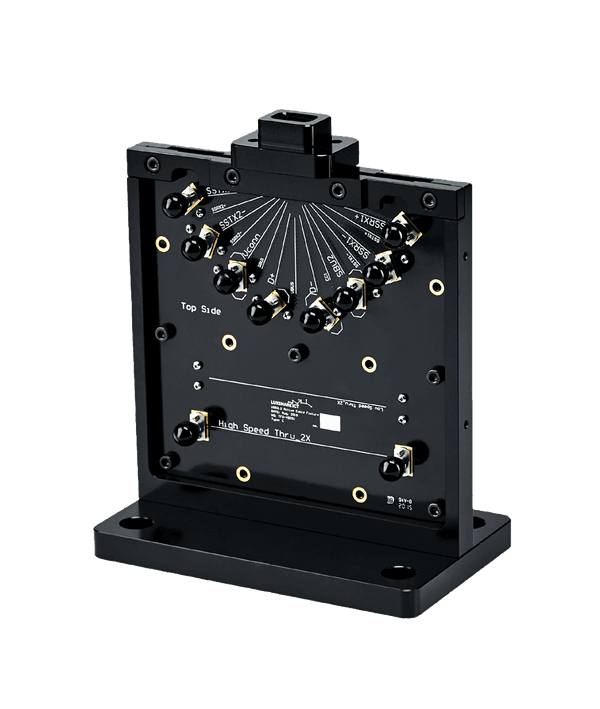

TFU49 Test Fixture

TFU-49R38: USB4 Type C Receptacle High Speed Test Fixture

TFU-59R18: USB4 Type C Receptacle Low Speed Test Fixture

Datasheet

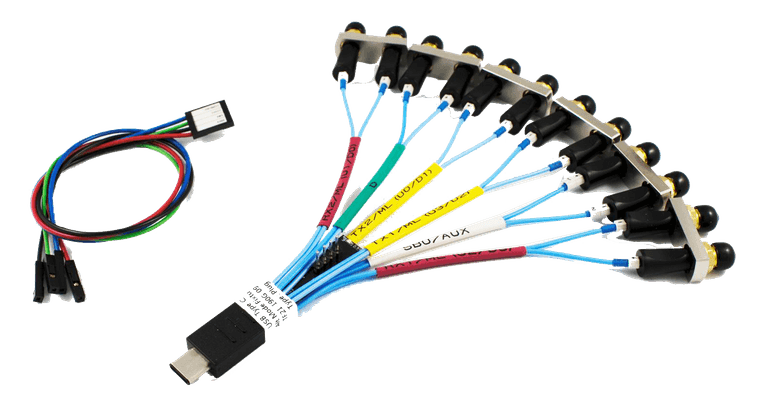

LL-USBC-TPA-P8: USB4 V2 TPA Plug Test Fixture
LL-USBC-TPA-R8: USB4 V2 TPA Receptacle Test Fixture
Learn More

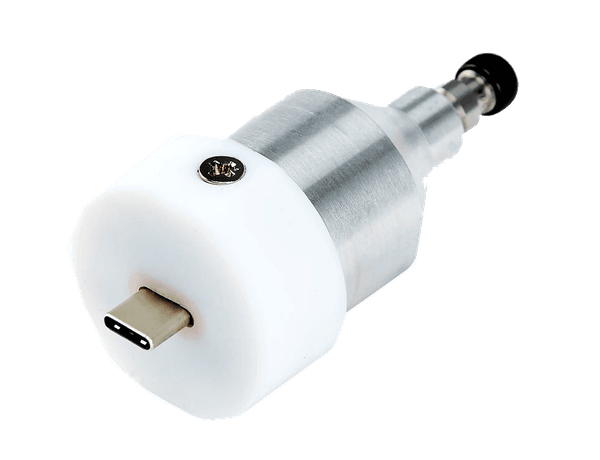

MEU-58P1F: USB Type-C RFI System Level Test Fixture
Learn More

TFU-49R2U: USB Type-C LRD Active Cable Test Fixture
Learn More

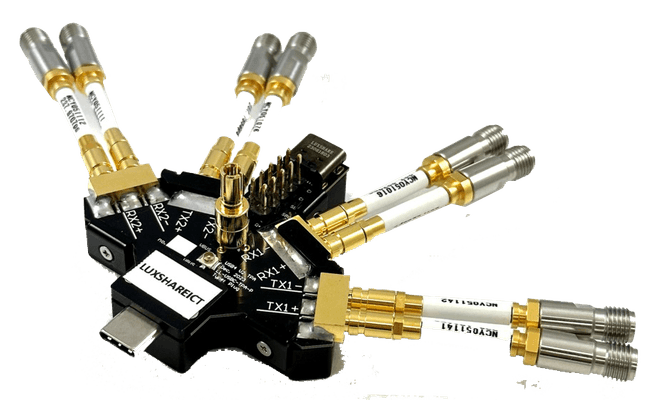

TF21-190G: USB Type-C Alt-Mode Plug Test Fixture
TF21-189G: USB Type-C Alt-Mode Receptacle Test Fixture
Learn More

About PacketMicro

PacketMicro, headquartered in Silicon Valley, provides one-stop shopping for your needs in PCB probing and signal-integrity analysis. Its product offering includes a wide range of rugged RF probes up to 65 GHz, patented probe positioners, DIY bench-top probe stations, flexible phase-stable RF cables, digital microscopes, and AITT signal-integrity analysis tools for interconnect de-embedding and PCB material extraction. PacketMicro customers include many Fortune 100 companies in 30+ countries.
