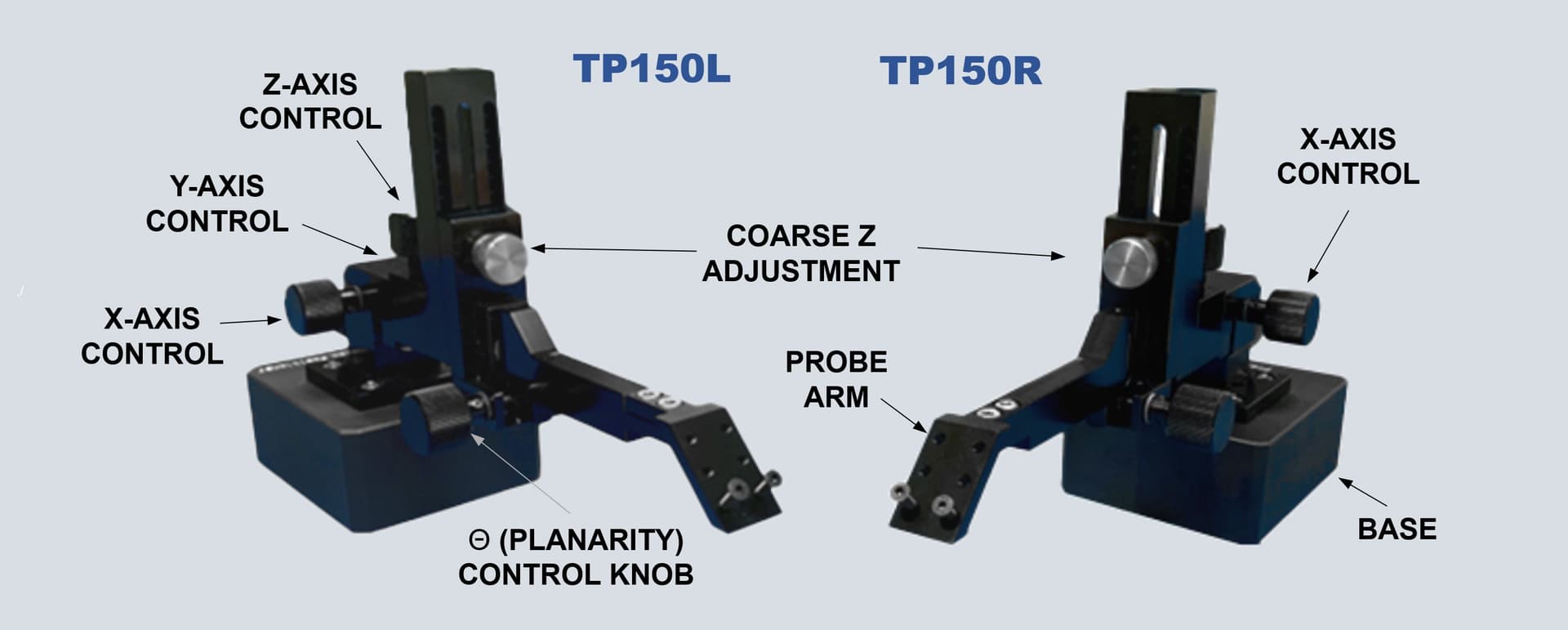

TP150
PRECISION POSITIONER
TP150 is designed to hold rugged PacketMicro probes. It allows a user to probe printed circuit boards with small geometry precisely. Its high-precision XYZ stage and long probe arm with planarization (θ) control make it ideal for probing printed-circuit boards in a wide range of RF and signal-integrity measurements.
Universal adapter
Holds most scope probes
Ease of control
Quickly reach points of interest
Precise Design
Ensure accurate, repeatable measurements
HIGHLIGHTS
- Easy-to-manipulate probe positioner for hands-free measurement
- High-precision XYZ-stage and Θ control allow probes to reach test points accurately and firmly
- Front probe arm can be reversed to probe extra tall circuit boards or boards with components on both sides
| Specifications | |
|---|---|
| XYZ-axis travel | 16 mm with 500 µm/turn (50 TPI), x/y-axis control knobs |
| Resolution | 5 µm |
| Height coarse adjustment | 5 mm/step (14 steps) |
| Θ (Planarity) control | ±10° with 2.5°/turn and 0.025° resolution |
| Dimensions (LxWxH) | 228x76x108mm (9"x3"x4.3" in.) |
| Weight | 2.86 lb. (1.3kg) |
Accessories

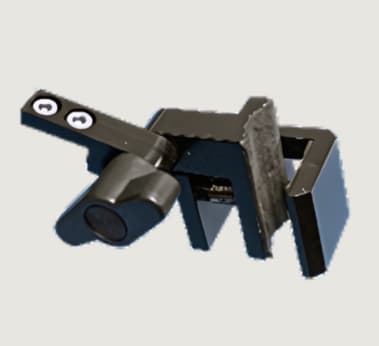

UA16-TP150
Universal adapter can hold large oscilloscope and RF probes.
TP150LU Precision Positioner with XYZθ control (left-handed) and Universal UA16 adapter
| TP250 & TP150 Comparison |  |  |
|---|---|---|
| TP250 | TP150 | |
| Probe Compatibility | Microprobes & PacketMicro Probes | PacketMicro Probes |
| Probe Fixture Compatibility | All PacketMicro fixtures | Standalone only |
| Large XY control Knobs | Yes | No |
| Smooth XYZ adjustment | Excellent | Typical |
| Base Magnetic Lock | Yes | No |
| Accessories | Many | Few |
Applications

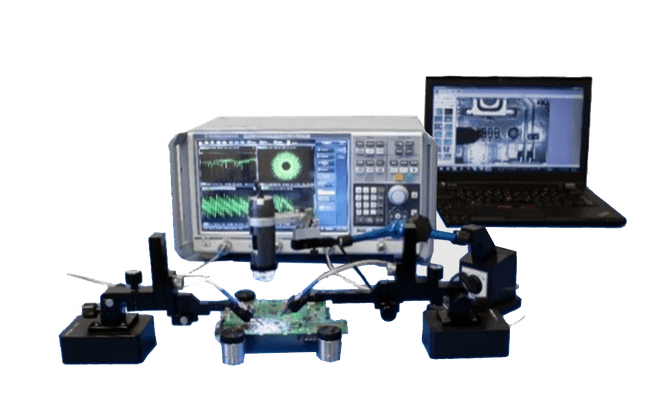

BENCHTOP RF PROBING
Horizontal probing of RF Module
S-Parameter measurements of a RF PCB with TP150L, TP150R, and S-Probes..

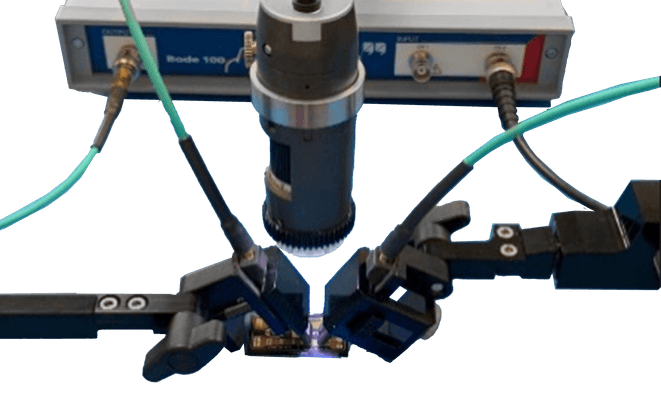

PDN PROBING
PDN Probe Station
mΩ PDN measurements with TP150LU, TP150RU, and Picotest probes
