D-PROBE
High-Performance Rugged Probes for SI Probing
D-Probe series is designed for signal integrity, and RF testing. Its strong beryllium copper (BeCu) tips make the D-Probe ideal for manufacturing testing of highspeed printed-circuit boards.
HIGHLIGHTS
- High Bandwidth: DC to 40 GHz
- Low Insertion Loss: < 3 dB @ 40 GHz for probe pitch < 0.5 mm
- Ruggedness: Strong enough for direct probing test pads on uneven surfaces
- High Repeatability: No moving parts
- Applications: Measurements for Delta-L + PCB, DDR memory, PCIe, HDMI, Display Port, and 100 Gigabit Ethernet boards
Specifications
Bandwidth
40 GHz (0.3/0.4/0.5/0.6 mm pitch) 35 GHz (0.8 mm pitch) 20 GHz (0.3 - 1.2 mm pitch)
Insertion Loss
Less than 3 db @ bandwidth
Impedance
50±2 ohm
Connector type
Female 2.92mm/40GHz, SMA/20GHz
Dimensions (lxwxh)
51x 38 x12 mm (2 x 1.5 x 0.5")
Weight
20 gm

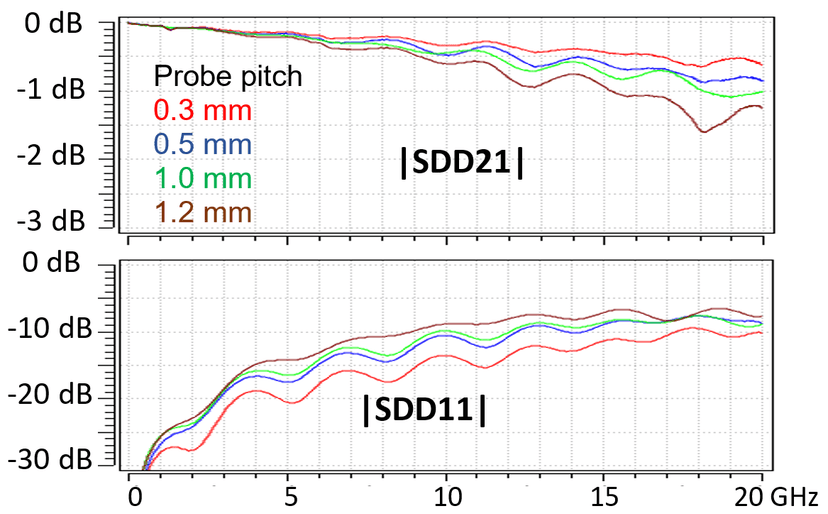

20 GHz D-Probe
Un-calibrated SDD21/SDD11 of 0.3/0.5/1.0/1.2 mm pitch
20 GHz PART NO.
BW (GHz)
PROBE PITCH
DP-SS-201503
20 GHz
0.3 mm / 12 mil
DP-SS-201504
20 GHz
0.4 mm / 16 mil
DP-SS-201505
20 GHz
0.5 mm / 20 mil
DP-SS-201508
20 GHz
0.8 mm / 32 mil
DP-SS-201510
20 GHz
1.0 mm / 40 mil
DP-SS-201512
20 GHz
1.2 mm / 48 mil
DP-SS-201503
20 GHz
0.3 mm / 12 mil
DP-SS-201504
20 GHz
0.4 mm / 16 mil
40 GHz D-Probe

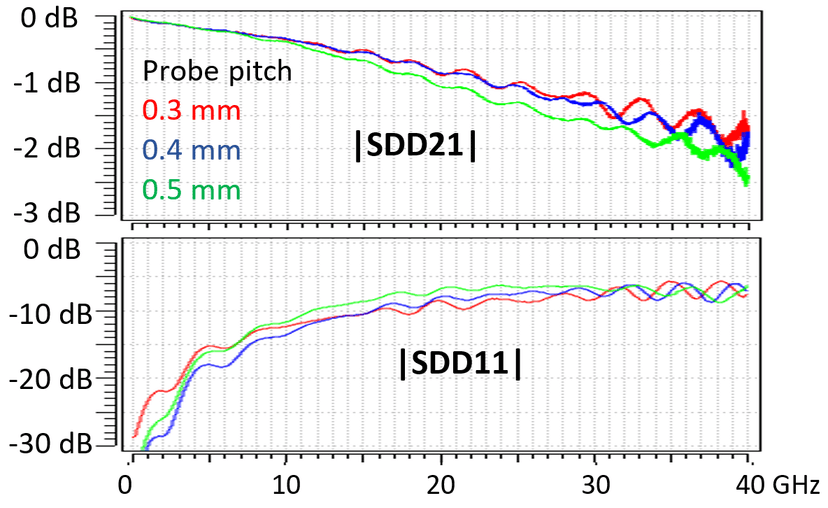

Un-calibrated SDD21/SDD11 of 0.3/0.4/0.5 mm pitch
40 GHz PART NO.
BW (GHz)
Probe Pitch
DP-SS-401502
40 GHz
0.2 mm / 8 mil
DP-SS-401503
40 GHz
0.3 mm / 12 mil
DP-SS-401504
40 GHz
0.4 mm / 16 mil
DP-SS-401505
40 GHz
0.5 mm / 20 mil
DP-SS-401506
40 GHz
0.6 mm / 24 mil
DP-SS-351508
35 GHz
0.8 mm / 32 mil
Accessories

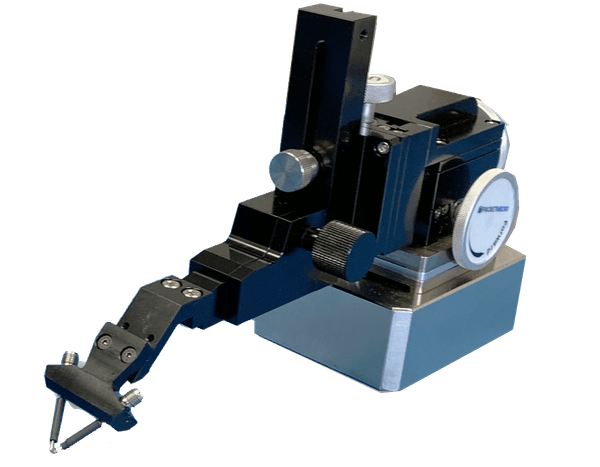

TP250 Precision Positioner
A precision positioner works with all PacketMicro's DIY probing fixtures.

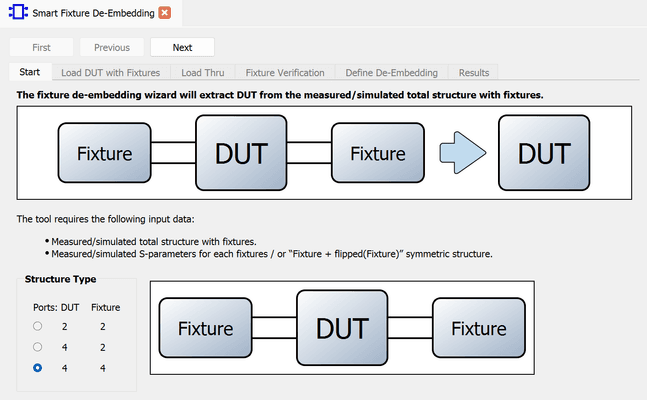

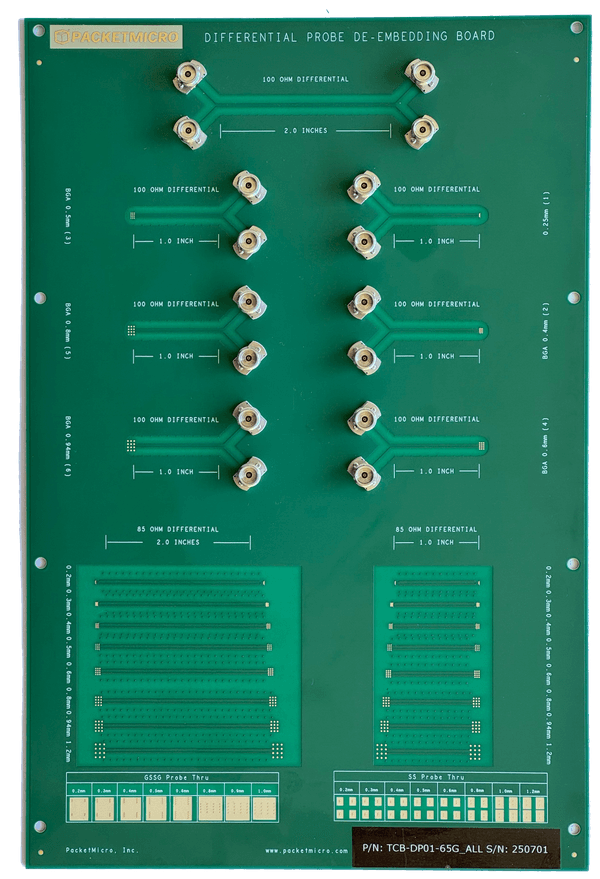

AITT-SFD De-Embedding
A versatile tool for extracting network parameters of highspeed interconnects.
Applications
HANDHELD PROBES FOR DELTA-L 4.0/3.0

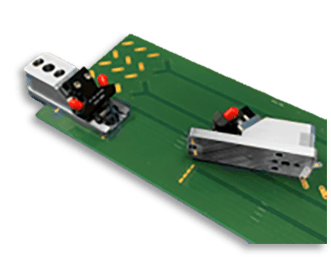

PacketMicro offers two different handheld probes for PCB characterization based on Delta-L 4.0/3.0 methodology that enables accurate PCB trace loss measurements and material extraction by removing the via effect.

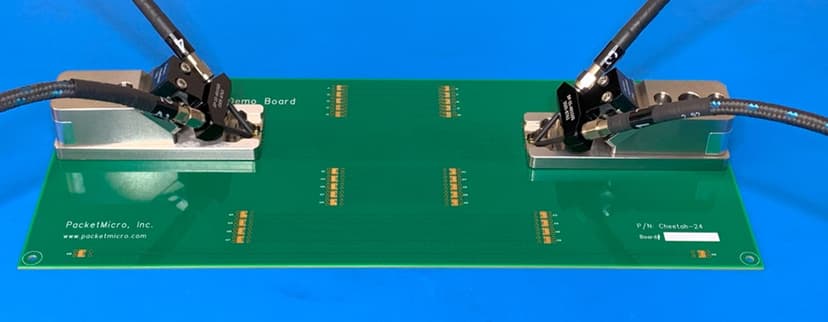

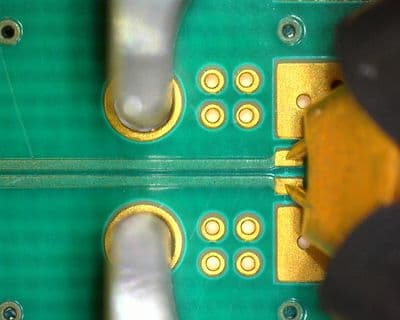

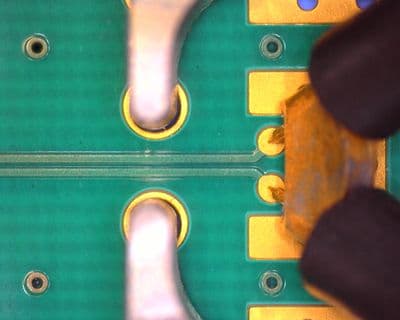

DIFFERENTIAL SIGNAL-SIGNAL PROBES

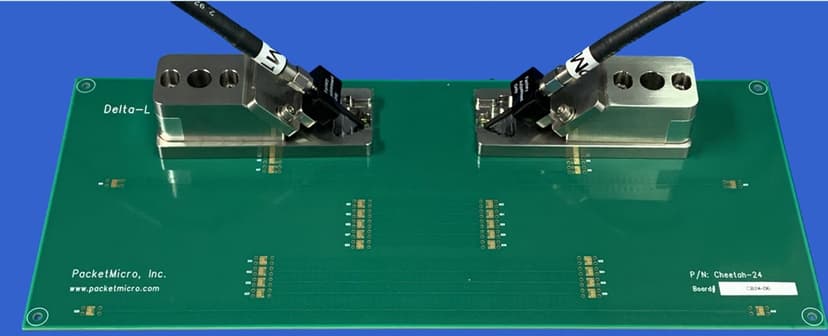

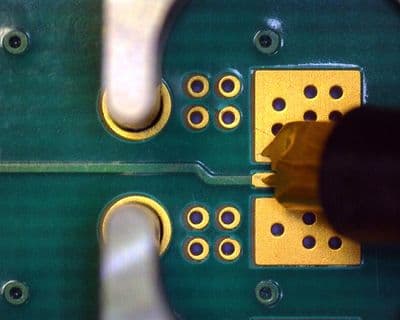

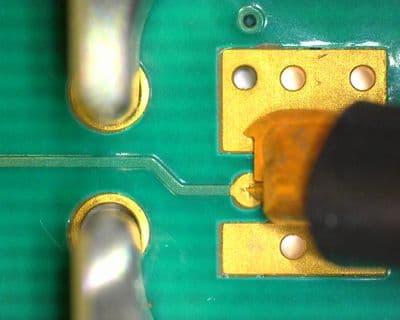

SINGLE-ENDED SIGNAL-GND PROBES
Delta -L 4.0
(40 GHz 0.5mm D-Probe)
Delta-L 3.0
(20 GHz 1.0mm D-Probe)
Delta-L 3.0
(18 GHz 1.0mm S-Probe)
Nonstandard
(30 GHz 0.5mm S-Probe)
