HP150
HANDHELD POSITIONER

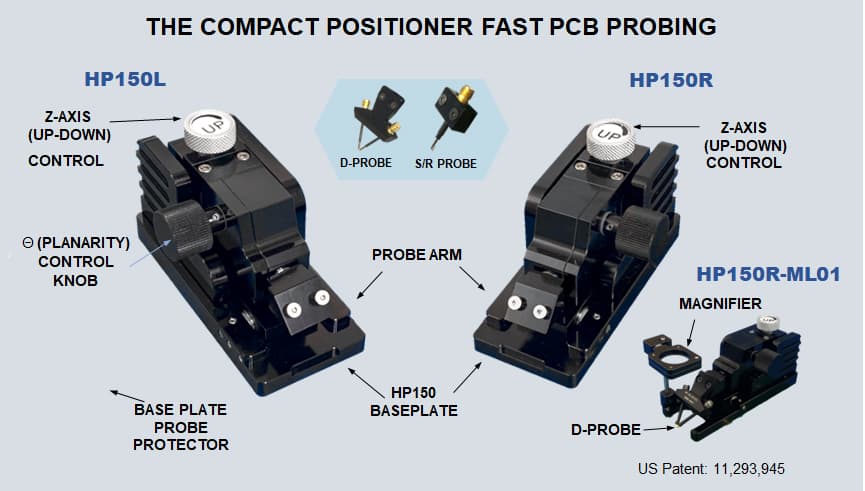

The compact positioner
Fast PCB probing
Protects probes
Automatic probe lifting
Easy & Precise
Integrated magnifier
HIGHLIGHTS
- Handheld positioner that can be picked up and landed at different test points without additional adjustment
- Rubber base membrane prevents slippage
- Base locks and unlocks from positioner easily and protects the positioner and probe when not on pcb
- Z-Axis & θ (Planarity) control knob only need to be adjusted once while mounting a new probe
- Tips are automatically raised when the user move the probe to a different location

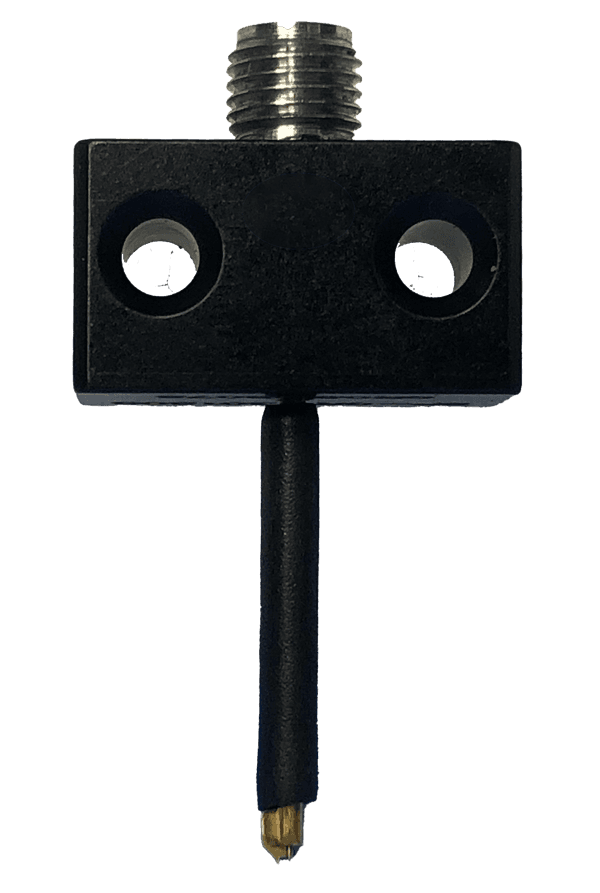

- Works with PacketMicro's differential D-probes (up to 40 GHz), singled-ended S/R probes (up to 30 GHz)
- Able to do close-proximity probing
| Specifications | |
|---|---|
| Z-axis travel | 8 mm with 500 µm/turn (50 TPI) |
| Resolution | 5 µm |
| Θ (Planarity) control | ±10° with 2.5°/turn and 0.025° resolution |
| Dimensions (LxWxH) | 132 x 58 x 70 mm/ 5.2 x 2.3 x 2.7 in. |
| Weight | 456 gm/ 1 lb. |
| Features | |
|---|---|
| Material | Base rubber membrane |
| Dimensions | 155 x 60 x 21 mm/ 6.1" x 2.4" x 0.83 in. |
| Weight | 248 gm / 0.55 lb |
Accessories
HP150-ML01
With Magnifier

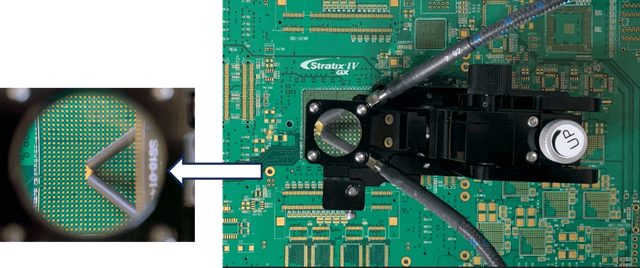

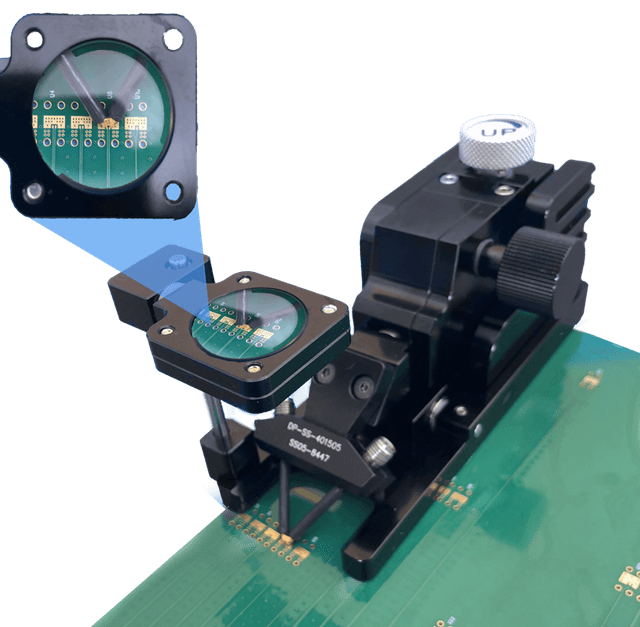

The above setup shows the probe tips are accurately landed on two 1 mm BGA pads by using the HP150 with a magnifier.
Applications
Bare PCB PROBING
TDR probing of Large PCB

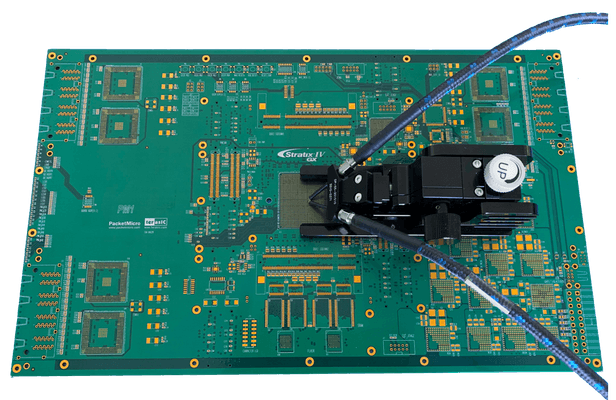

HP150 is ideal for making TDR measurements of a large PCB.
Delta-L PROBING
Probing of Delta-L PCB

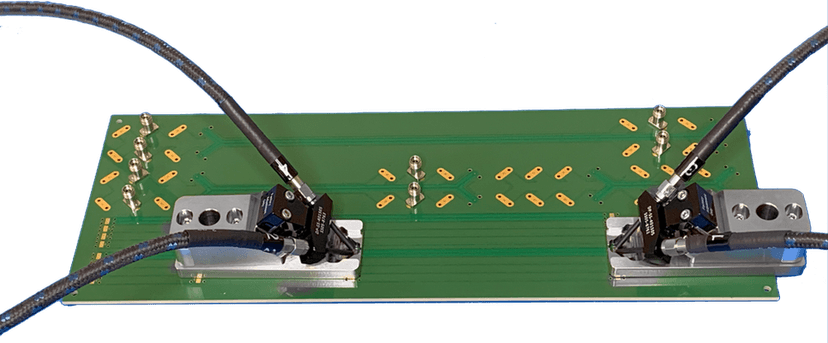

HP150 can be used to probe a PCB with Delta-L footprints
